Question 281

Which symbol in figure G7-1 represents a field effect transistor?

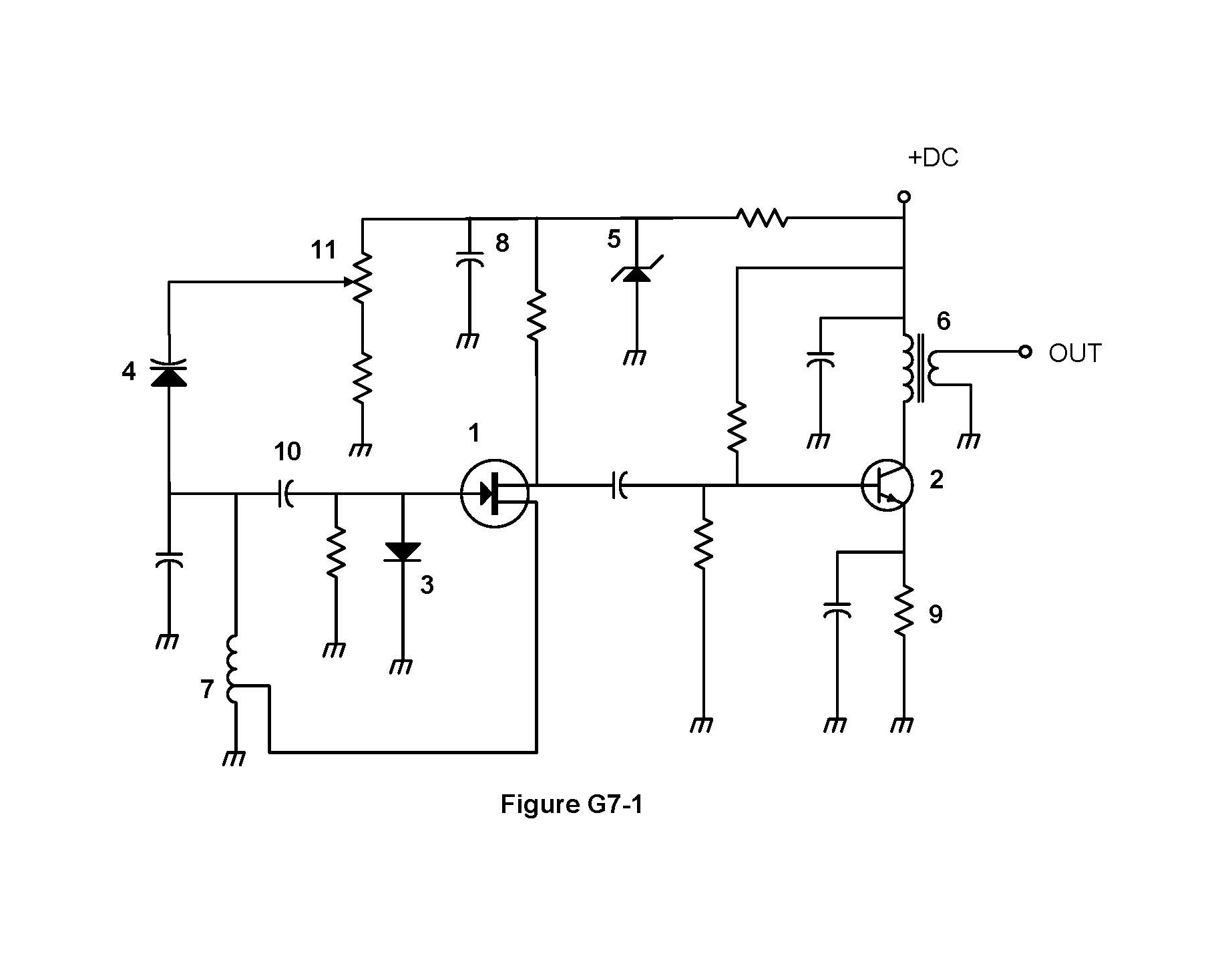

Figure G7-1 from the official question pool: a schematic diagram of an electronic circuit with component symbols numbered 1 through 11.
  1. Symbol 2
  2. Symbol 5
  3. Symbol 1Correct answer
  4. Symbol 4

Explanation

Symbol 1 is the field effect transistor in Figure G7-1. Symbol 2 is the NPN junction transistor and symbol 5 is the Zener diode, while symbol 4 does not identify the field effect transistor.
