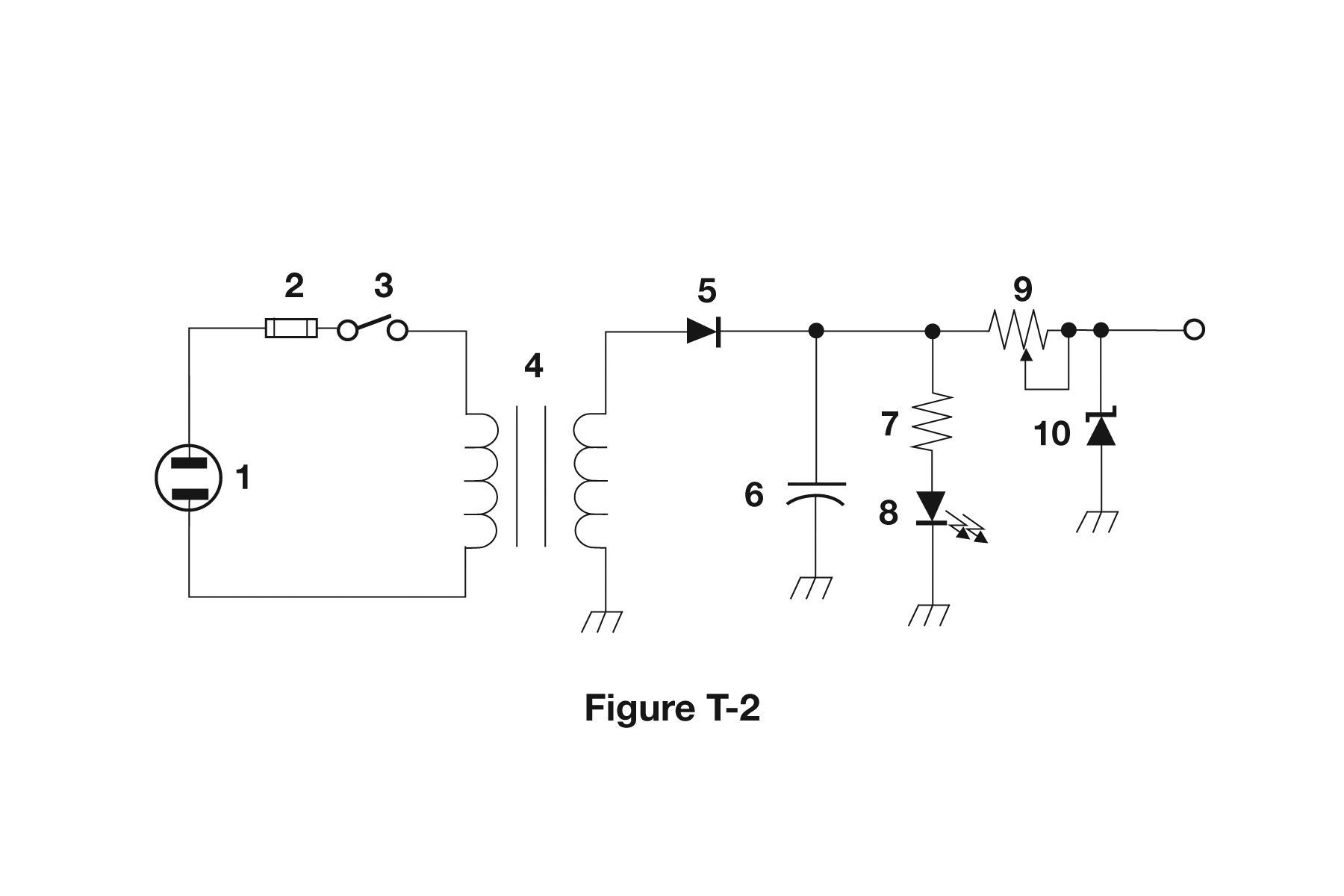

What type of switch is represented by component 3 in figure T-2?
Single-pole single-throw✓Correct answer
Single-pole double-throw
Double-pole single-throw
Double-pole double-throw
Explanation
Component 3 is the single-pole single-throw switch in Figure T-2. The single-pole double-throw, double-pole single-throw, and double-pole double-throw choices name different switch types and do not match the numbered symbol.
